Conventional Stamped Parts

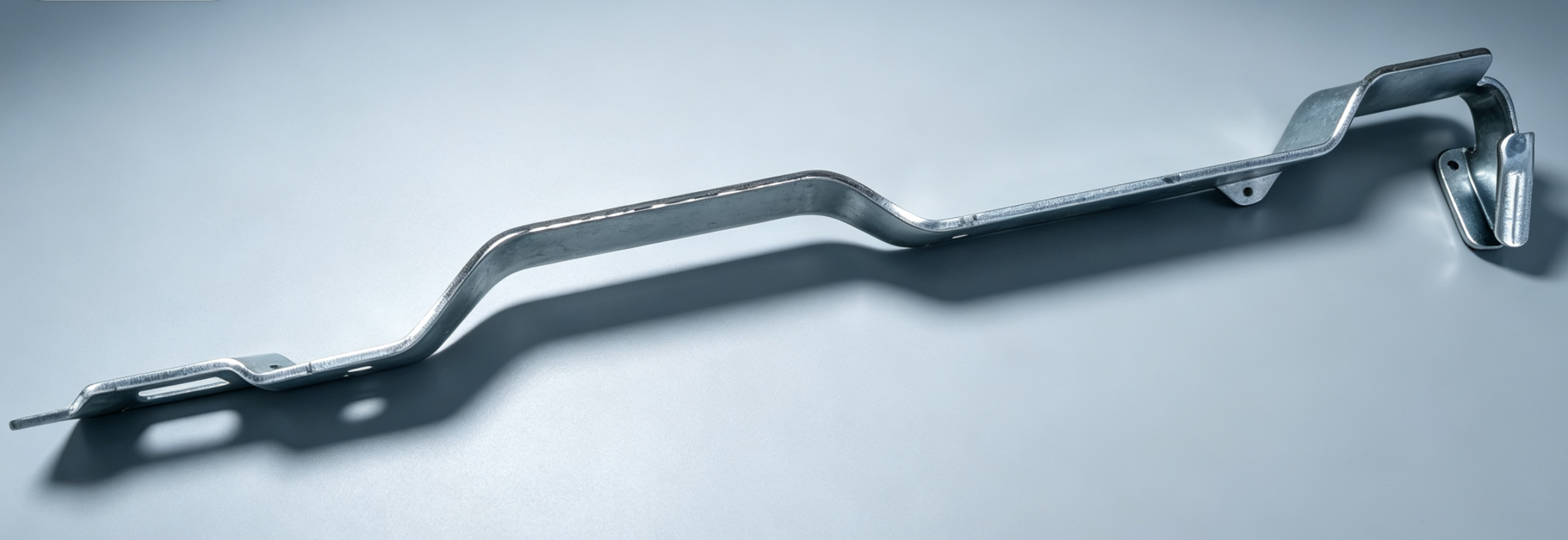

Stamped Bracket
Long formed bracket with offset bends, slots and a rolled end feature.
Conventional Stamped Parts

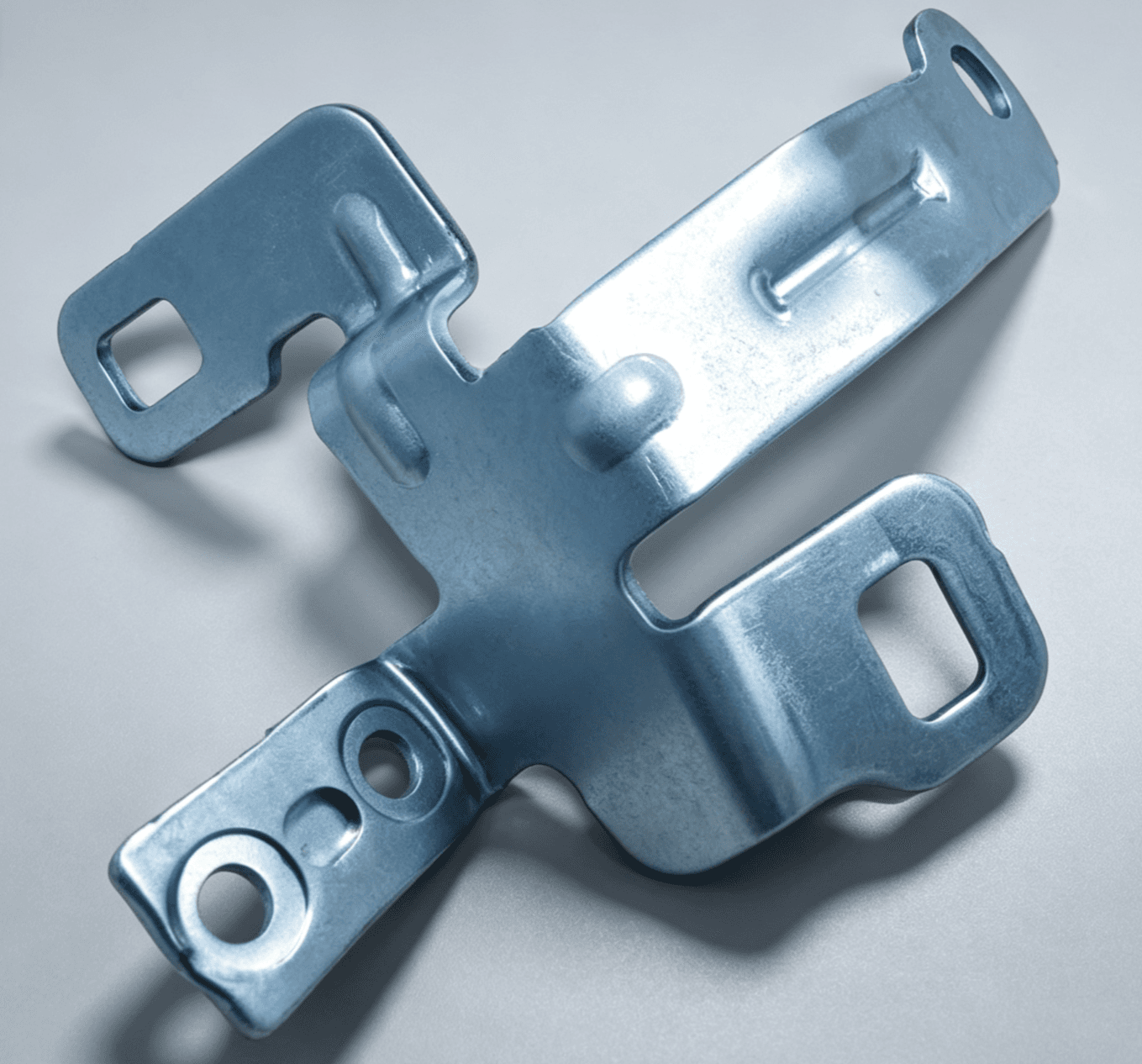

Multifunctional Support Frame
Formed and assembled support frame that combines several mounting features.
Overview
The multifunctional support frame combines several formed features in one frame. Where required, stamped parts are welded or assembled into the finished frame.
Features
- Several mounting features in one frame
- Formed and, where needed, welded construction
- Geometry follows your drawing
Specifications
- Finish
- Selected to your drawing and confirmed during RFQ review
- Process
- Blanking, piercing, forming, welding and assembly as required
- Samples
- Available on request, subject to project review
- Material
- Selected to your drawing and confirmed during RFQ review
- Dimensions and tolerances
- Defined by your drawing and agreed before tooling
Applications
- Industrial equipment
- Automotive support structures
Advantages
- Stamping, welding and assembly under one site
- Fewer separate parts to source
More from Conventional Stamped Parts
Have a drawing or sample to review?
Send the part, material, finish and quantity. We review feasibility before preparing a quotation.
