Stamping and Drawing Parts
Ignition Tube Sleeve
Stepped, cup-shaped sleeve formed by deep drawing, shown with an embossed mark on the closed end.
Products
Deep-drawn and stamped components
Two product families covering drawn sleeves, covers and casings, and stamped brackets, connectors and frames. Specifications follow your drawing.
Stamping and Drawing Parts
4 representative parts
Parts formed from a flat blank into a cup, sleeve, shell or cover. The wall is drawn in one piece, so the body has no weld seam.
Stamping and Drawing Parts
Flanged Bushing
Drawn bushing with a flange for locating and seating the part in an assembly.
Stamping and Drawing Parts

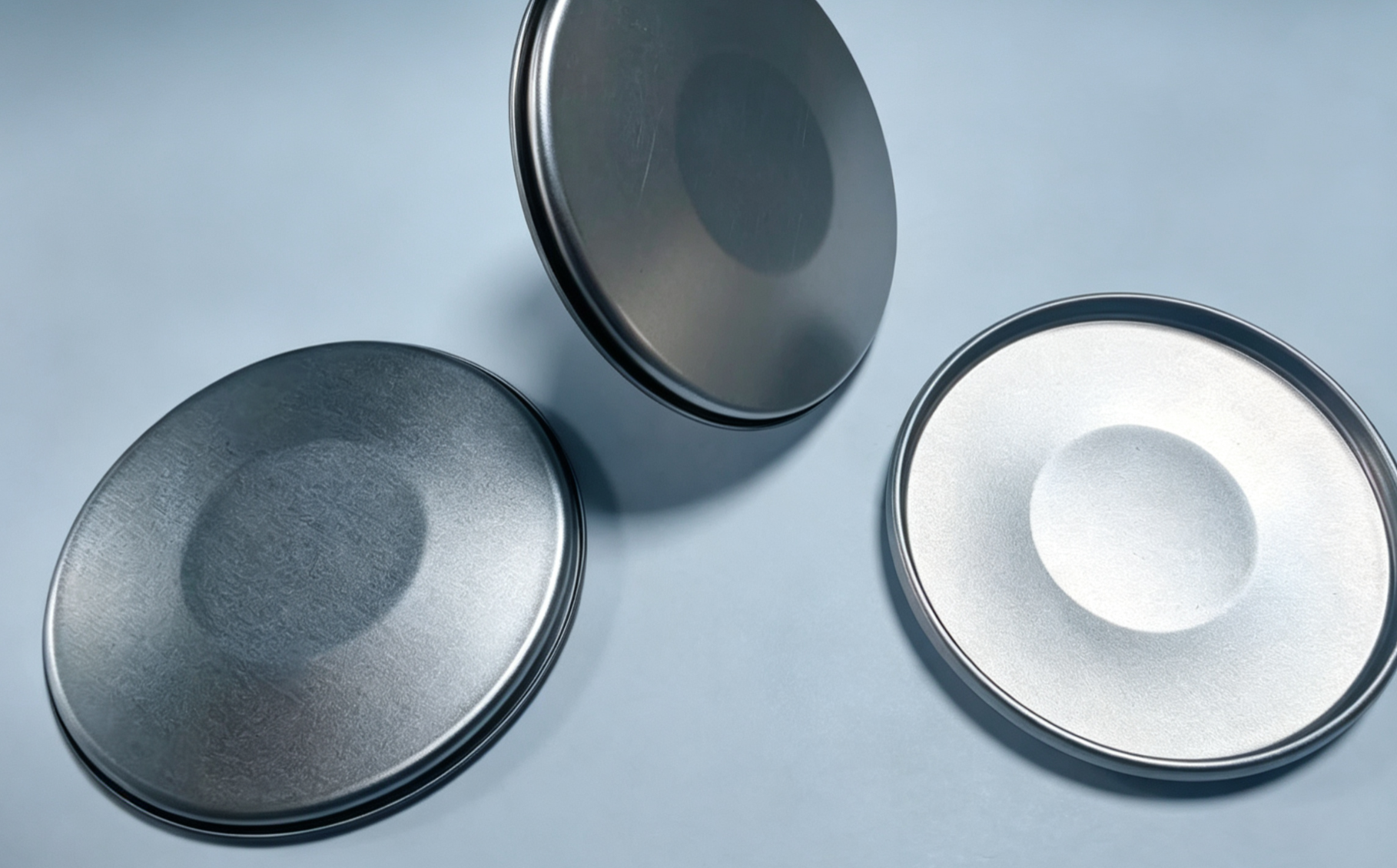

Deep-Drawn End Cover
Round drawn cover with a rolled rim and a shallow formed recess in the centre.
Stamping and Drawing Parts

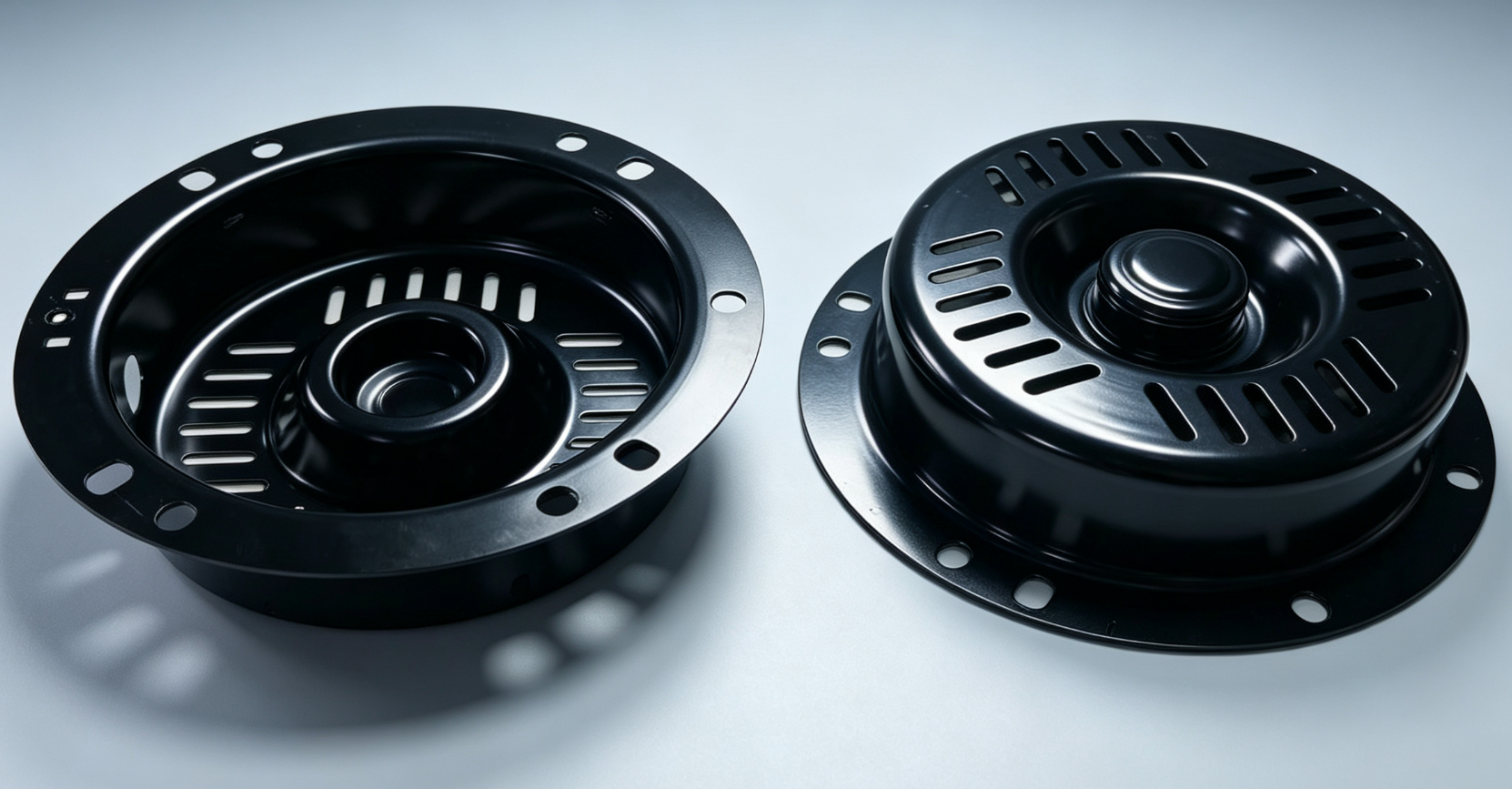

Motor Casing
Drawn shell that houses motor internals, formed as a continuous body.
Conventional Stamped Parts
6 representative parts
Flat and formed sheet-metal parts made by blanking, piercing and bending. Brackets, plates, connectors and frames, including welded or assembled sets.
Conventional Stamped Parts
Stamped Bracket
Long formed bracket with offset bends, slots and a rolled end feature.
Conventional Stamped Parts
Car Seat Belt Connector
Formed connector plate with a stiffened slot, a round hole and stamped part marks.
Conventional Stamped Parts

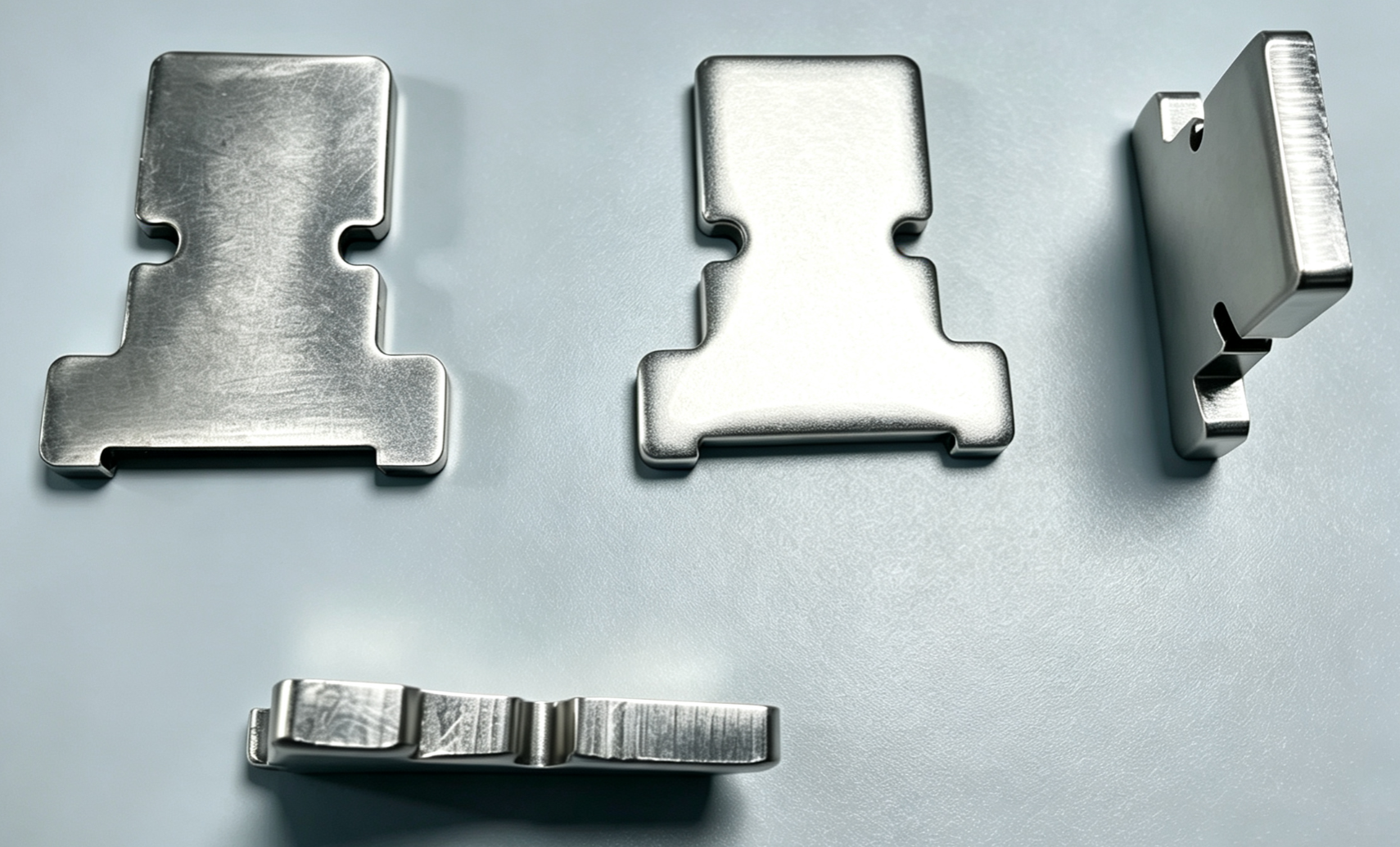

Lock Plate
Flat stamped plate that carries locking or latching features.
Conventional Stamped Parts

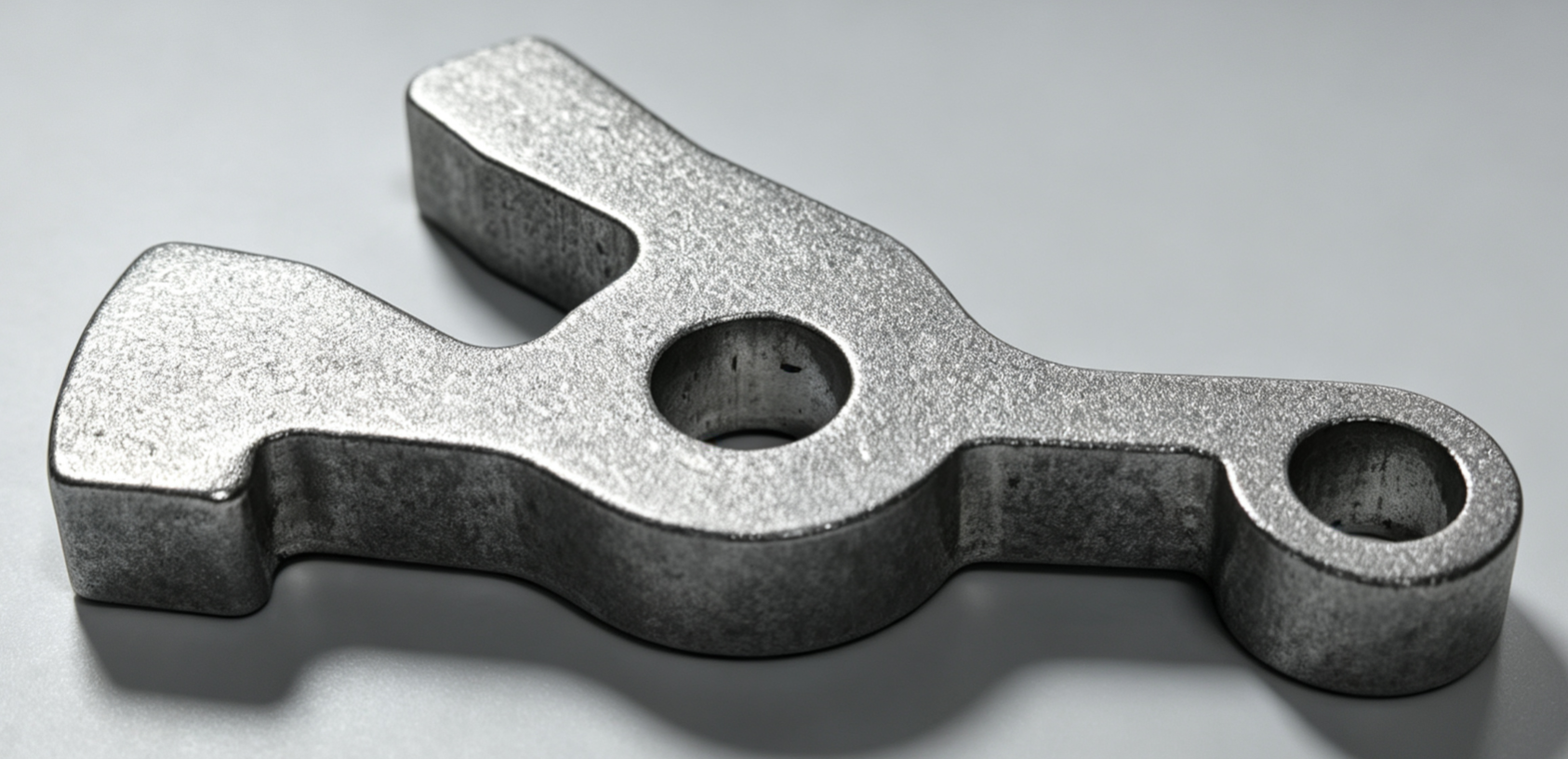

Precision Latch
Small stamped latch component where accurate form and fit matter.
Conventional Stamped Parts

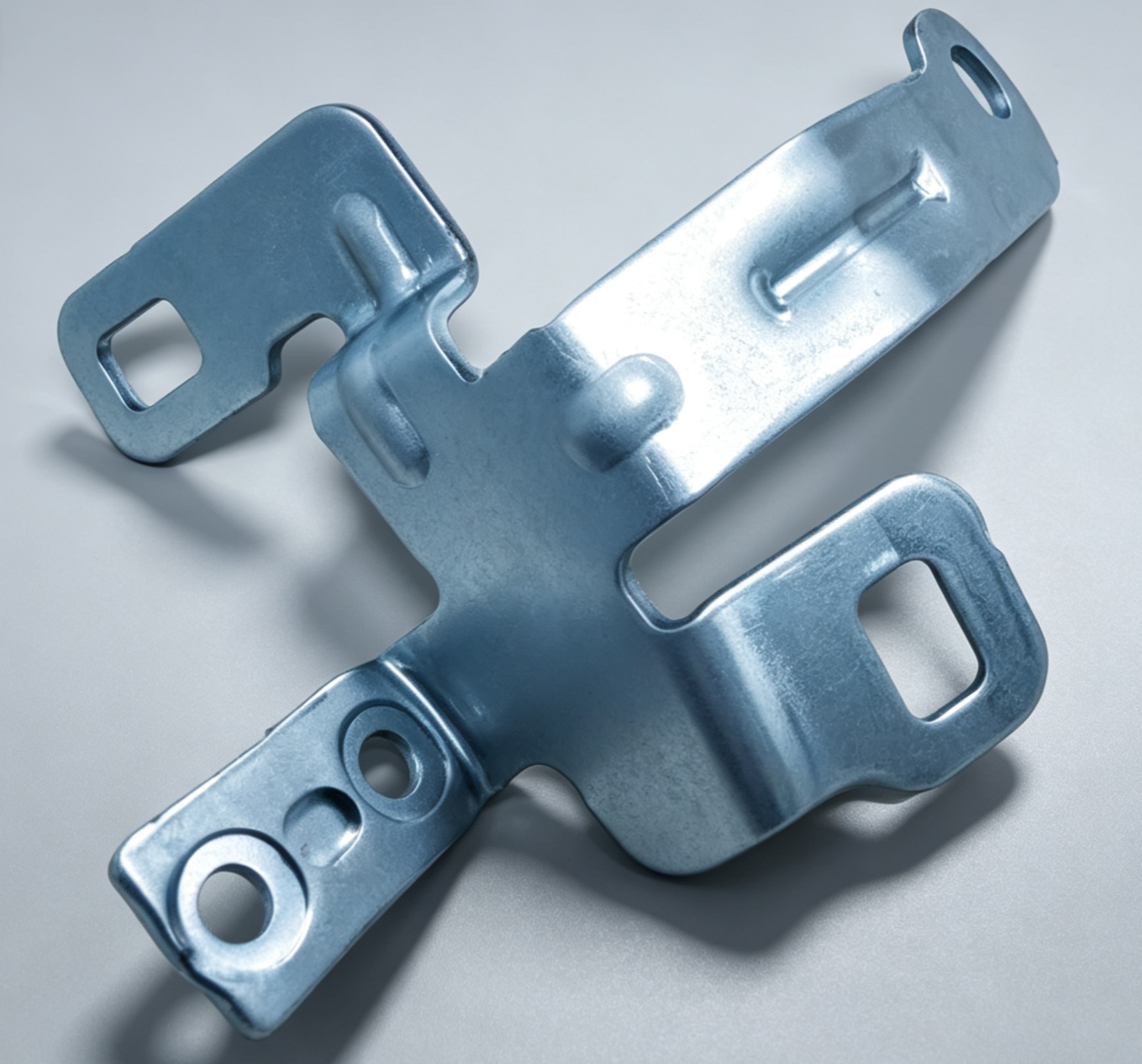

Multifunctional Support Frame
Formed and assembled support frame that combines several mounting features.
Conventional Stamped Parts
Automotive Seat Frame Bracket
Formed and welded seat frame brackets with serrated cut-outs, slots and mounting holes.
Do not see your part?
Customization is supported. Send a drawing or sample and we will review whether it fits one of the two families.
