Stamping and Drawing Parts
Deep-Drawn End Cover
Round drawn cover with a rolled rim and a shallow formed recess in the centre.
Overview

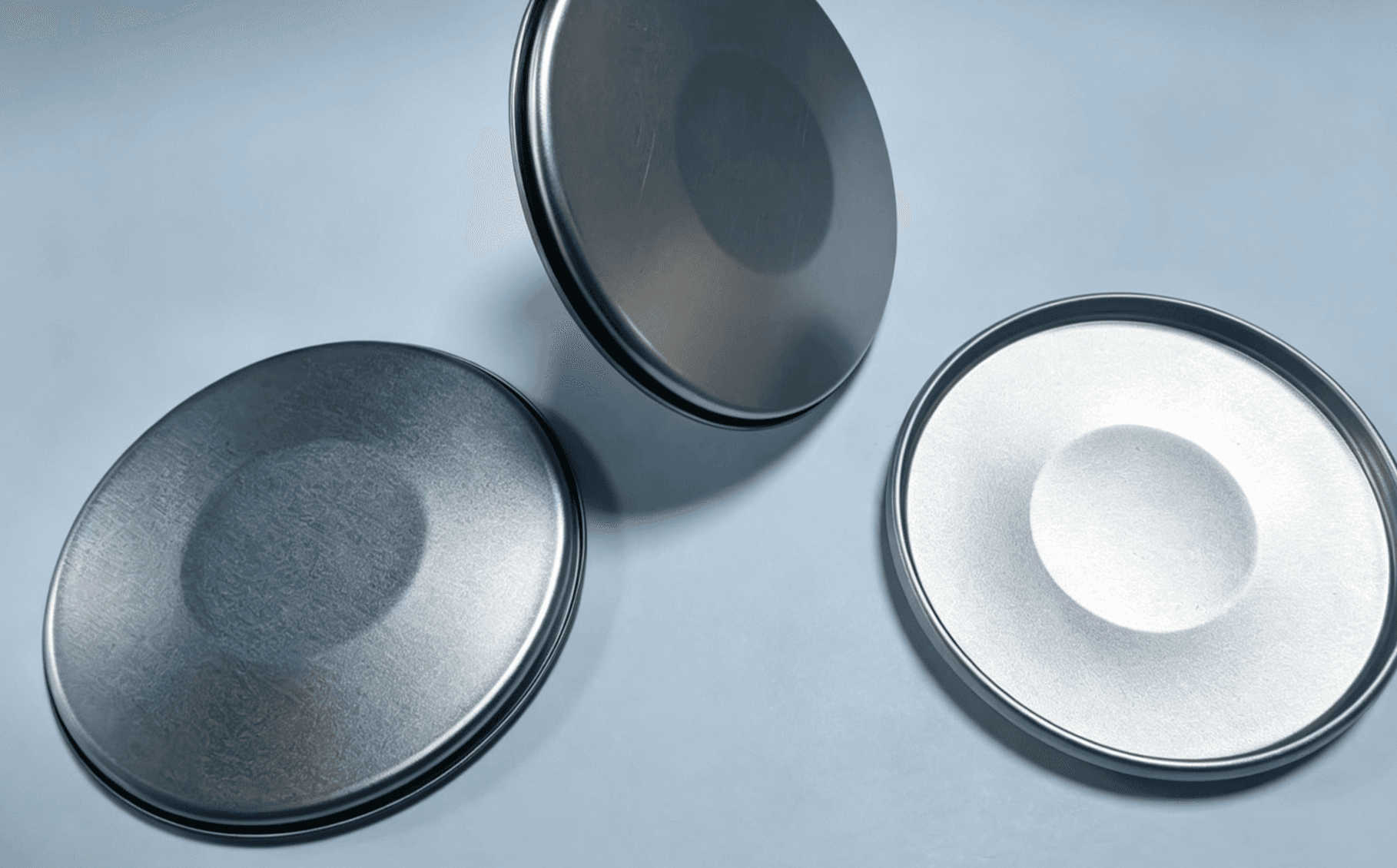

The deep-drawn end cover is a round cover with a rolled rim and a shallow formed recess. The sample photography shows the outer face and the inner face with the recess.
Features
- Round cover with a formed rim
- Shallow recess formed in the centre
- Outer and inner faces shown
Specifications
- Finish
- Selected to your drawing and confirmed during RFQ review
- Process
- Deep drawing
- Samples
- Available on request, subject to project review
- Material
- Selected to your drawing and confirmed during RFQ review
- Dimensions and tolerances
- Defined by your drawing and agreed before tooling
Applications
- Motor and enclosure end closures
Advantages
- Rim and recess are formed in the drawing sequence
- Flat, even faces suit mating and sealing designs
