Stamping and Drawing Parts
Ignition Tube Sleeve
Stepped, cup-shaped sleeve formed by deep drawing, shown with an embossed mark on the closed end.
Overview

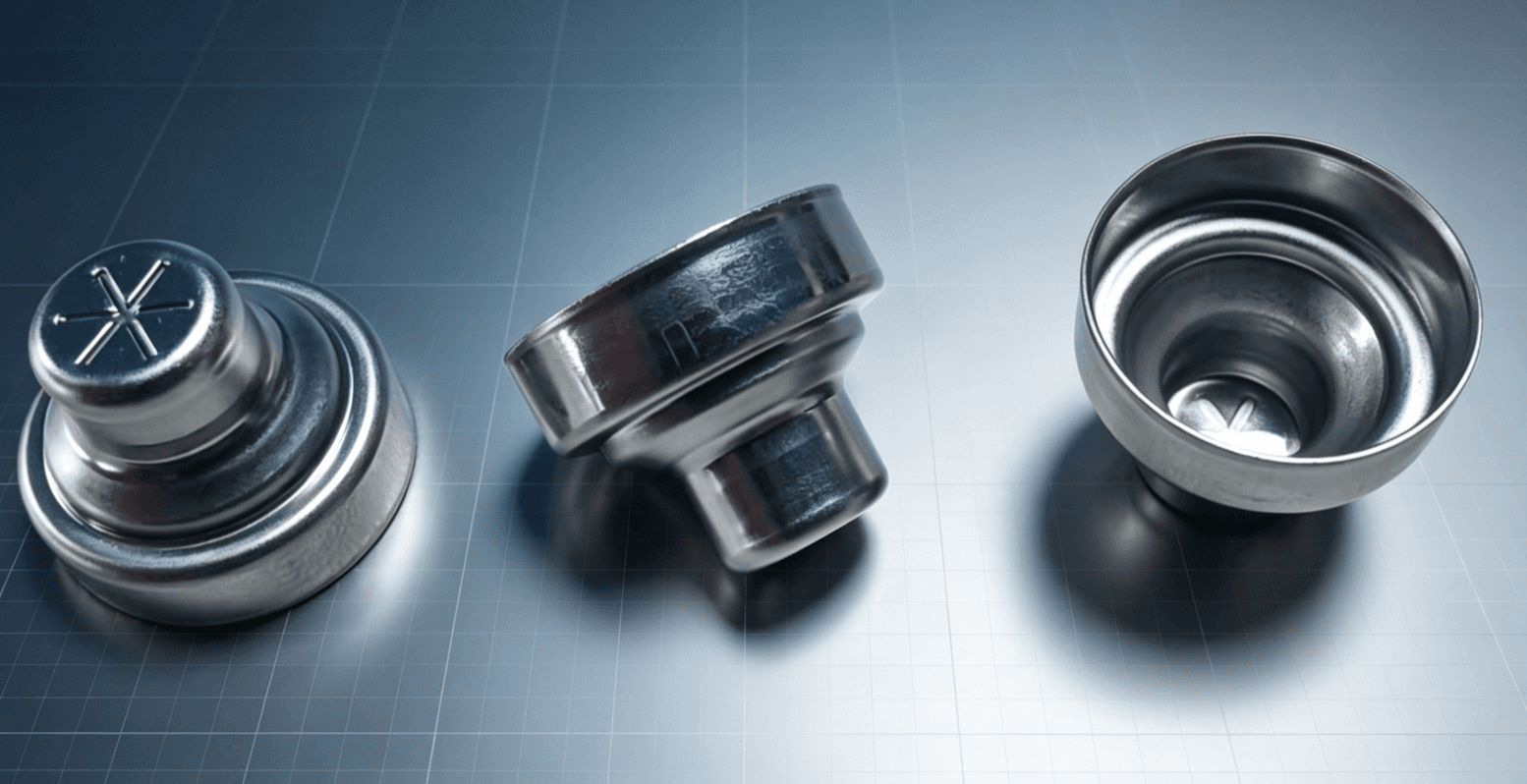

The ignition tube sleeve is a stepped metal sleeve drawn from sheet. The sample photography shows the closed-end view with an embossed marking, the stepped side profile, and the open-end view of the inner contour.
Features
- Stepped body with a flanged base
- Closed end with embossed marking
- Open-end view shows the inner profile
Specifications
- Finish
- Selected to your drawing and confirmed during RFQ review
- Process
- Deep drawing
- Samples
- Available on request, subject to project review
- Material
- Selected to your drawing and confirmed during RFQ review
- Dimensions and tolerances
- Defined by your drawing and agreed before tooling
Applications
- Automotive ignition-related assemblies
Advantages
- Deep drawing forms the wall from one blank, so the body has no weld seam
- Marking and step geometry are formed in the same tooling sequence
More from Stamping and Drawing Parts
Have a drawing or sample to review?
Send the part, material, finish and quantity. We review feasibility before preparing a quotation.
