Stamping and Drawing Parts
Ignition Tube Sleeve
Stepped, cup-shaped sleeve formed by deep drawing, shown with an embossed mark on the closed end.
Stamping and Drawing Parts
Flanged Bushing

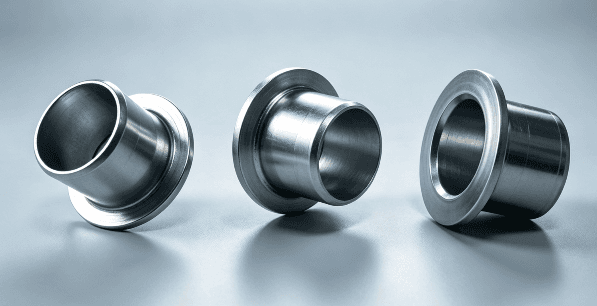

Drawn bushing with a flange for locating and seating the part in an assembly.
Overview
The flanged bushing is a drawn sleeve with a flange that seats against a mating surface. Dimensions, wall and flange geometry follow the customer drawing.
Features
- Drawn sleeve with a flange
- Flange acts as the seating face
- Geometry follows your drawing
Specifications
- Finish
- Selected to your drawing and confirmed during RFQ review
- Process
- Deep drawing
- Samples
- Available on request, subject to project review
- Material
- Selected to your drawing and confirmed during RFQ review
- Dimensions and tolerances
- Defined by your drawing and agreed before tooling
Applications
- Motor and mechanical assemblies
Advantages
- Continuous drawn wall without a weld seam
- Suited to repeat production once tooling is approved
More from Stamping and Drawing Parts
Have a drawing or sample to review?
Send the part, material, finish and quantity. We review feasibility before preparing a quotation.
