Stamping and Drawing Parts

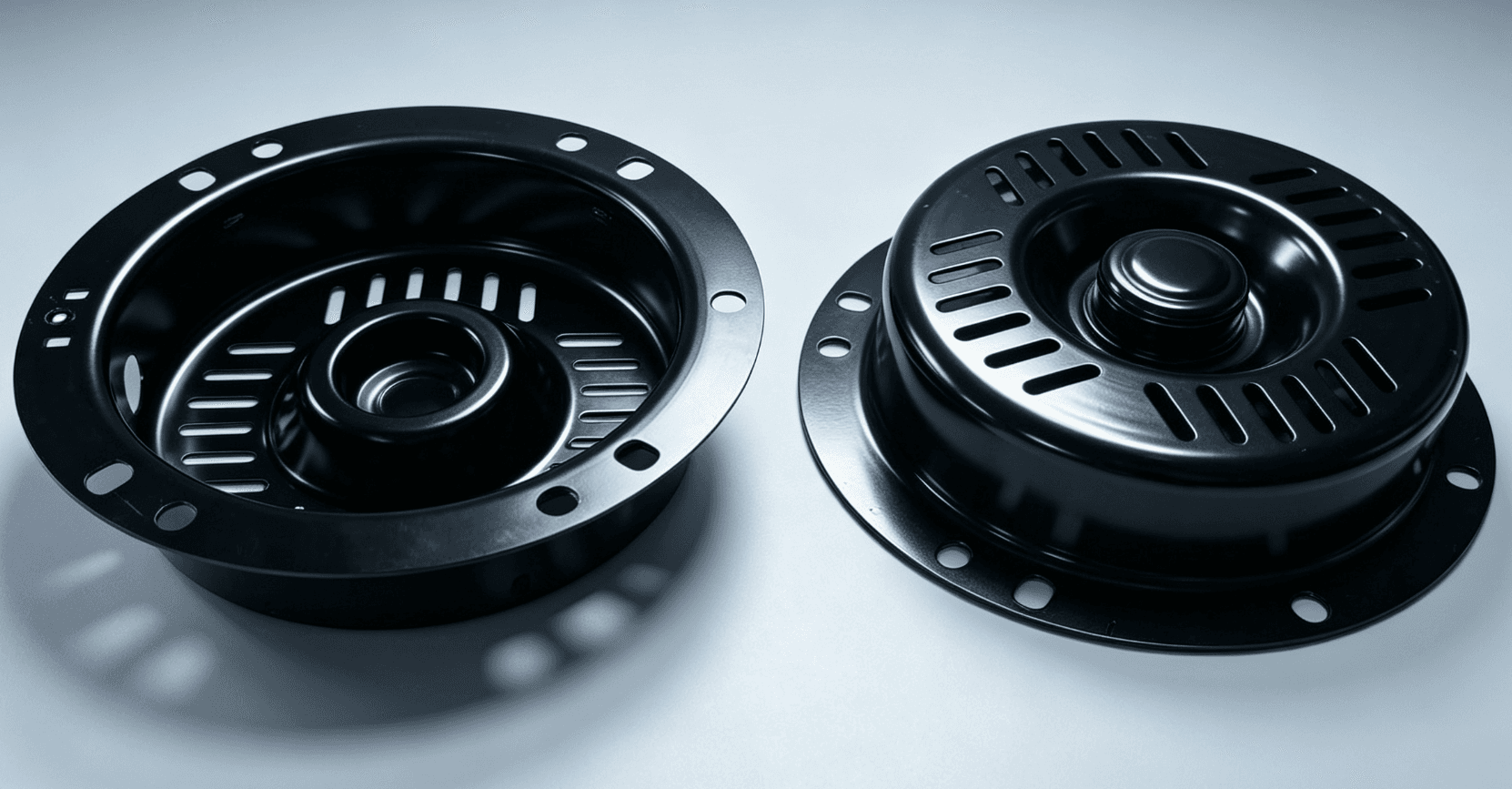

Motor Casing
Drawn shell that houses motor internals, formed as a continuous body.
Overview
The motor casing is a drawn shell for housing motor components. Diameter, depth, wall and end features are defined by the customer drawing.
Features
- Drawn shell body
- End features per drawing
- Suited to housing-style geometry
Specifications
- Finish
- Selected to your drawing and confirmed during RFQ review
- Process
- Deep drawing
- Samples
- Available on request, subject to project review
- Material
- Selected to your drawing and confirmed during RFQ review
- Dimensions and tolerances
- Defined by your drawing and agreed before tooling
Applications
- Motor assemblies
- New-energy drive components
Advantages
- Continuous drawn wall
- Secondary operations can be added after drawing
More from Stamping and Drawing Parts
Have a drawing or sample to review?
Send the part, material, finish and quantity. We review feasibility before preparing a quotation.
